40 ft Container 1BHK House Plan with A-Frame Sit-Out: 700 Sq Ft Design Pack (PDF, CAD, 3D Renders)
40 ft Container 1BHK House Plan with A-Frame Sit-Out: 700 Sq Ft Design Pack (PDF, CAD, 3D Renders)
Couldn't load pickup availability
One container, one complete small home

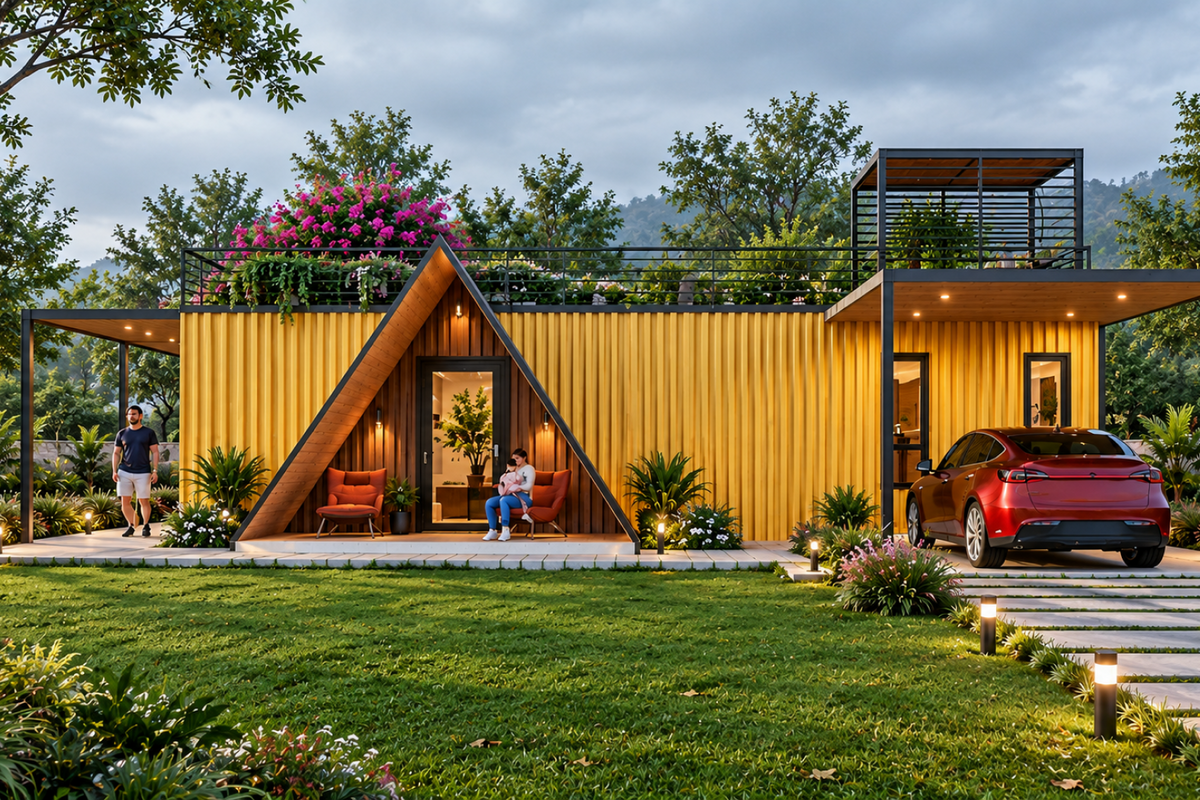

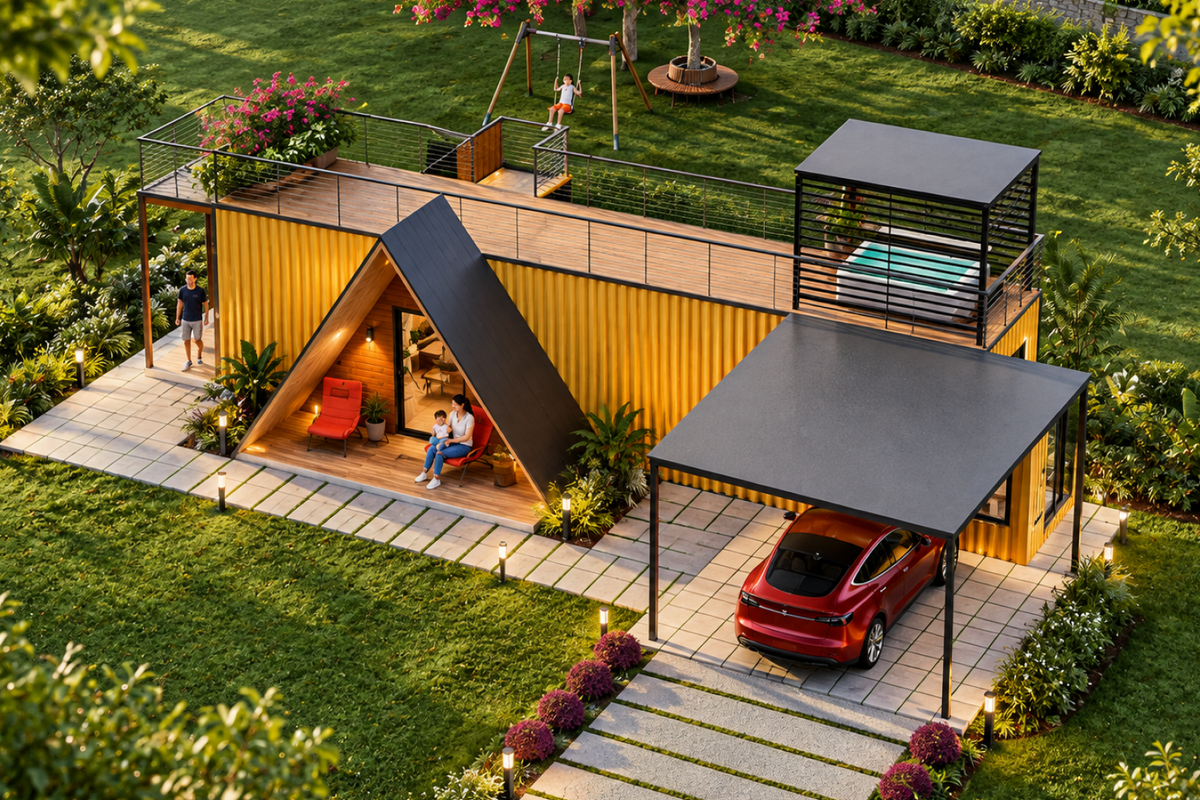

A single 40 ft shipping container becomes a one bedroom home with a living area, a kitchenette and a bathroom. An A-frame sit-out at the front gives you a covered outdoor room, and there is a parking bay alongside. It is a simple, quick way to put a home, a guest unit or a rental stay on your land.
You get the complete design as a digital pack, plus a build quote from our execution partners when you are ready.
At a glance
| Home type | 1 bedroom container house |
| Build system | One 40 ft x 8 ft shipping container |
| Total area | 700 sq ft (65.03 sq m) |
| Container (indoor) area | 320 sq ft (29.73 sq m) |
| Sit-out and parking | 380 sq ft (35.30 sq m) |
| Living area and kitchenette | 23'-0" x 7'-6", 173 sq ft |
| Bedroom | 10'-0" x 7'-6", 75 sq ft |
| Bathroom | 6'-0" x 4'-3", 26 sq ft |
| A-frame sit-out | 15'-4" x 9'-0", 138 sq ft |
| Parking area | 12'-0" x 17'-0", 204 sq ft |
| Best for | Couples, guest houses, farm stays, rental units, first homes |
What you get
- 2D floor plan (PDF + CAD file), with every room dimensioned
- 2D elevation working drawings (PDF + CAD file), with sections and heights
- 3D render views (PDF with image views) from several angles
- 2D and 3D drawings in a flipbook (web link) that opens on any phone and is easy to share with your family and builder
- Execution quote and support: tell us where you are building and we arrange a build quote from our execution partners, and guide you through the next steps
Drawings are A3 size, in feet and inches, with metric measurements in brackets.
How it works
- Buy and download. Your files and flipbook link arrive by email straight after payment.
- Tell us where you are building. We arrange an execution quote from a container home fabricator in our partner network.
- Get the structure checked locally. A licensed engineer confirms the structure and foundation for your site, soil and weather.
- Build. You sign with the builder directly, and we stay available for design questions.
Good to know before you buy
- Made for India. The pack, the execution quote and our support are for projects in India.
- These are architectural drawings. Structural, electrical and plumbing drawings are not included, because they depend on your site and local rules.
- Execution partners are independent builders. The quote and the build agreement are between you and the builder, and partner availability can vary by state.
- One purchase covers one build. Builders who want to build this design for several clients can ask us about a commercial licence.
- This is a digital product. Nothing is shipped.
Questions
I am not an architect. Will I understand the drawings?
Yes. The flipbook and 3D views show what the home looks like. The working drawings are for your builder.
How do I open the files?
PDFs and the flipbook open on any phone or computer. CAD files open in AutoCAD and most other CAD programs.
Do I need to buy the container myself?
Usually the fabricator sources and prepares it. The execution quote covers this.
Do you build it for me?
We design it and connect you with an execution partner for a quote. The build agreement is between you and that builder.
Can I ask for changes?
Yes. Message us with your plot size and what you would like altered, and we will tell you what is involved.
